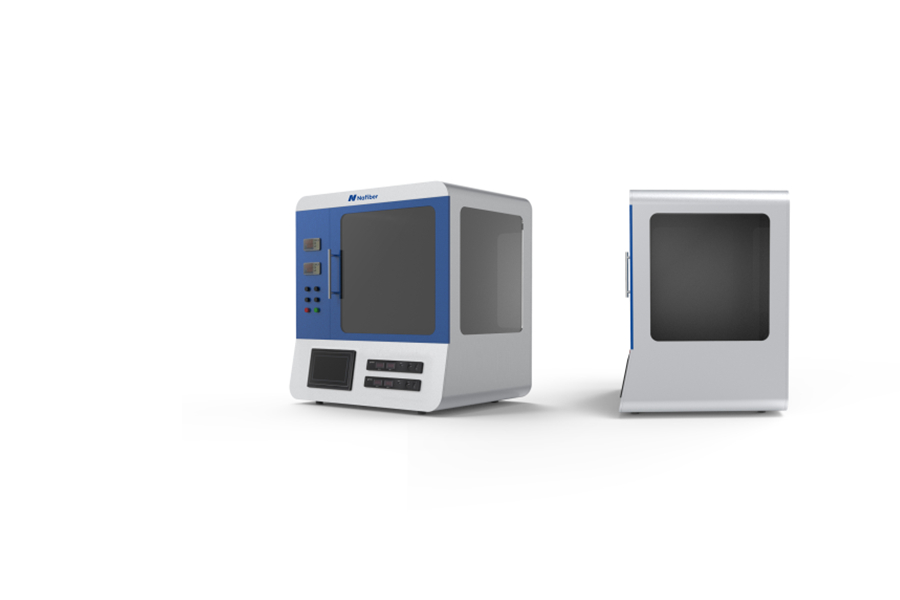

BS-200 Universal Electrospinning Equipment

Product characteristics:
1、Compact design to save space
2、Full module automatic motion control, high precision and easy operation
3、High precision temperature and humidity control
4、Good man-machine interface, parameters can be saved and adjustable
5、It can realize remote control of mobile terminal
6、Function can be modular, can be customized

Strong R&D strength

Senior Nanomaterial Expert

Excellent technical engineer

Strategic cooperation among universities

Wide range of product applications

  Product Details

Product characteristics:

1、Compact design to save space

2、Full module automatic motion control, high precision and easy operation

3、High precision temperature and humidity control

4、Good man-machine interface, parameters can be saved and adjustable

5、It can realize remote control of mobile terminal

6、Function can be modular, can be customized


Product advantages:

1、Fully enclosed spinning environment with constant temperature, humidity, and airflow to reduce spinning drift

2、Imported module motion unit, high-precision fully automatic control, dynamically adjust able parameters during spinning (such as distance, drum speed, liquid pushing speed,temperature, humidity, etc)

3、Full parameter feedback, save, export, and call, with one clickspinning capability

4、Can achieve remote control on the mobile end and real-time observation

5、Buitin liquid pushing pump design, no need for hose connection, saving electrospinning liquid

6、Safety protection: power overvoltage and over current protection, working operation indicator light, emergency stop switch, door opening and power outage, limit alarm, etc

7、Multiple typesof customizable spinning collectors and nozzlesto meet various scientific research needs


Technical Data:


Overall dimension

1000(L)×750(D)×1000(H)(mm)

Material: Sheet metaland painting

High voltage
power supply

1.Positive polarity:0-30 kV,Current:0-1mA

2. Negative polarity:0-30 kV,Current:0-1 mA

· Equipped with electric shock and power outage protection

· Highstabilty, High precision,Small volume

Automatic motion

controlsystem

1.X axis (automatic positioning): 0-260mm

2.Z axis (automatic positioning):0-160mm

3.Y-axis(automatic reciprocation): Reciprocation 0-150mm

4.Automatic distance adjustment from spinneret to collector:10-350mm

· Closed module.xXYZaxis fully automatc control,accuracy≤0.01mm

Liquid supply system

1.High precision liquid pushing pump.Feed rate:0.0001mm/s-0.5mm/s.

2.Two syringe pumps: Speed can be controlled separately, can obtain core-shell,hollow and bicomponent nanofibers

3.The syringe pumps are placedinside: Save electric spinningliquid, easy to clean

4.Mult-type spinneret: Single spinneret, multiple spinneret, coaxialspinneret,side by side spinneret, parallel spinneret,etc

Collector system

1.Rotary drum collector:Drum diameter:100mm; Drum length:210mm; Drum speed:0-1500rpm

2. Plate collector:200mm×200mm

· Multi-style collector, customizable

Temperature
and humidity
control system

1.Temperature control:Spinning area temperature-70°C,Accuracy±1°C

2.Humidity control:30%-Spinning area humidity,Acuracy 3%

3.Exhaust gas removal control:500-5000 sccm

Operating system

1.LED lighting: The spinning processcan be observed

2.The lighting position is adjustable

Safety protection system

Indicatorlight, emergencystop switch,opendoor power of,limitalarm,grounding protection, etc





Application Area

Biomedicine

Microelectronics

New energy

Environmental protection

Defence and military

Protection

Artificial skin

PM2.5 mask
