Electrospinning Equipment

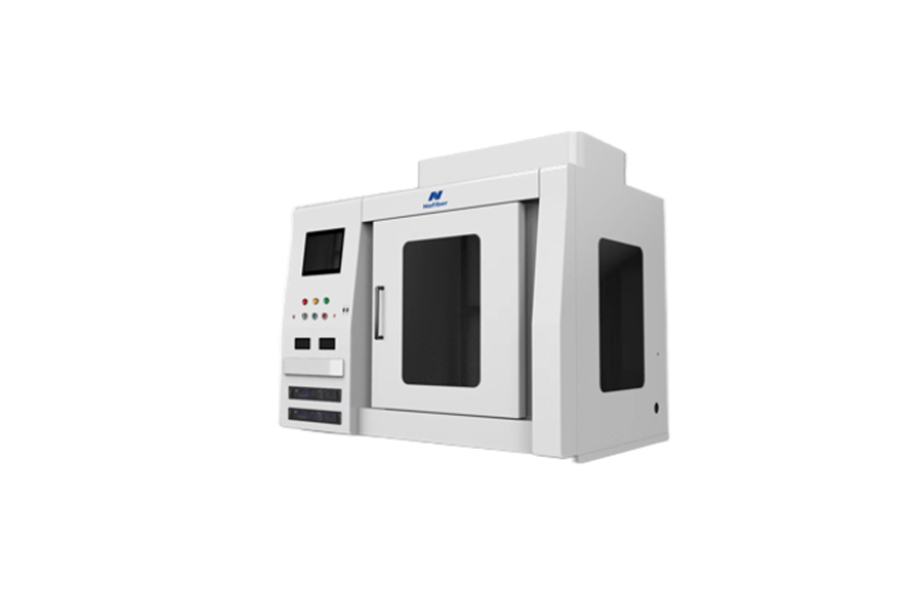

SR-200 Medical Electrospinning Equipment
Product characteristics:
1、304 stainless steel material
2、Fully enclosed and dust freeinterior design
3、Muli functional, High voltage,High stability
4、High precision 6 axis automatic control
5、Conjugation and direct spinning function switch
6、Full parameter feedbacksaving, exporting, and calling the PLC system
7、Design of built-in liquid pushing pump
8、It can independently control theliquid pushing pump through multiple channels9、Modular and customizable functions
Strong R&D strength
Senior Nanomaterial Expert
Excellent technical engineer
Strategic cooperation among universities
Wide range of product applications
Product Details
Product characteristics:
1、304 stainless steel material
2、Fully enclosed and dust freeinterior design
3、Muli functional, High voltage,High stability
4、High precision 6 axis automatic control
5、Conjugation and direct spinning function switch
6、Full parameter feedbacksaving, exporting, and calling the PLC system
7、Design of built-in liquid pushing pump
8、It can independently control theliquid pushing pump through multiple channels
9、Modular and customizable functions
Product advantages:
1、304 stainless steel material, high corrosion resistance
2、Fully enclosed spinning environment with constant temperature, humidity, and airflowto reduce spinning drit
3、Imported module motion unit, high-precision fully automatic control, dynamically adjust able parameters during spinning (such as distance, drum speed, liquid pushing speed, temperature,humidlty, etc)
4、Full parameter feedback save,export, and call, with one ctick spinning capability
5、Can achieveremotecontrol on the mobile end and real-timeobservation
6、Buitin iquid pushing pump design, no need for hose connection, saving electrospinning liquid
7,Safety protection: power overvoltage andovercurrent protection working operation indica tor light, emergency stop switch, door opening and poweroutage,limit alarm,etc
8、Multiple types of customizable spinning collectorsand nozzles to meet various scientfic re search needs
Technical Data:
| Overall dimension | 1300(L)×820(D)×1100(H)(mm) Material: 304 stainless steel |
High voltage power supply | 1. Positive polarity:0-50 kV,Current:0-1 mA 2. Negative polarity:30-0 kV,current:0-1mA · Equipped with electric shock and power outage protection · High voltage, High stability, High accuracy |
Automatic motion controlsystem | 1.X axis (automatic positioning):0-260mm 2.Z axis(automatic positioning): 0-160mm 3.Y-axis(automatic reciprocation): Reciprocation 0-150mm 4.Automatic distance adjustment from spinneret to collector:10-350mm · XYZaxis fully automatic control,accuracy≤0.01mm |
Liquid supply system | 1.High precision liquid pushing pump.Feed rate:0.0001mm/s-0.5mm/s. 2.Two syinge pumps Speed can be controlled separately, can obtain core-shell,hollow and bicomponent nanofibers 3.The syringe pumps are placedinside: Save electric spinning liquid,easy to clean 4.Multi-type spinneret Single spinneret,multiple spinneret, Coaxialspinneret, side by side spinneret, parallel spinneret,etc |
Collector system | 1. Rotary drum collector:Drum diameter:100mm; Drum length:210mm; Drum speed:0-2000rpm 2. Plate collector:200mm×200mm 3.Multimode receiver: cage type, disc type, tube type, hydrogelfiber collector,etc Customizable |
Expandable functions | 1.Function switching between conjugate spinning and direct spinning 2. Ultrasonic spray/electrostatic spray function · It can realize the preparation of hydrogel fiber/microspheres, layer by layer composite of nanofibers, and blending of nanofibers |
Temperature and humidity controlsystem | 1.Temperature control:Spinning area temperature-70℃,Accuracy±1℃ 2. Humidity control:30% Spinning area humidity,Accuracy 3% 3. Exhaust gas removal control: 500-5000 sccm 4.Eficient dehumidification device 5. Spinning chamber atmosphere control |
Operating system | 1. PLC system offullparameterfeedback,saving, exporting, and calling 2. Remote control function of mobile terminal 3.10inch touch human-machineinterface with high integration level 4.Formulainteface allowsfor one clickimport ofexperimentalparametersto achieve one click spinning |
| Observation system | 1.LEDlighting: The spinning processcan be observed 2.Built-in sterilization lamp |
Safety protection system | Indicator light,emergency stop switch,open door power off, limit alarm, grounding protection,etc |
Application Area
Biomedicine
Microelectronics
New energy
Environmental protection
Defence and military
Protection
Artificial skin
PM2.5 mask
