SR-100 All-round Electrospinning Equipment

Home>>Products>>Electrospinning Equipment

Electrospinning Equipment

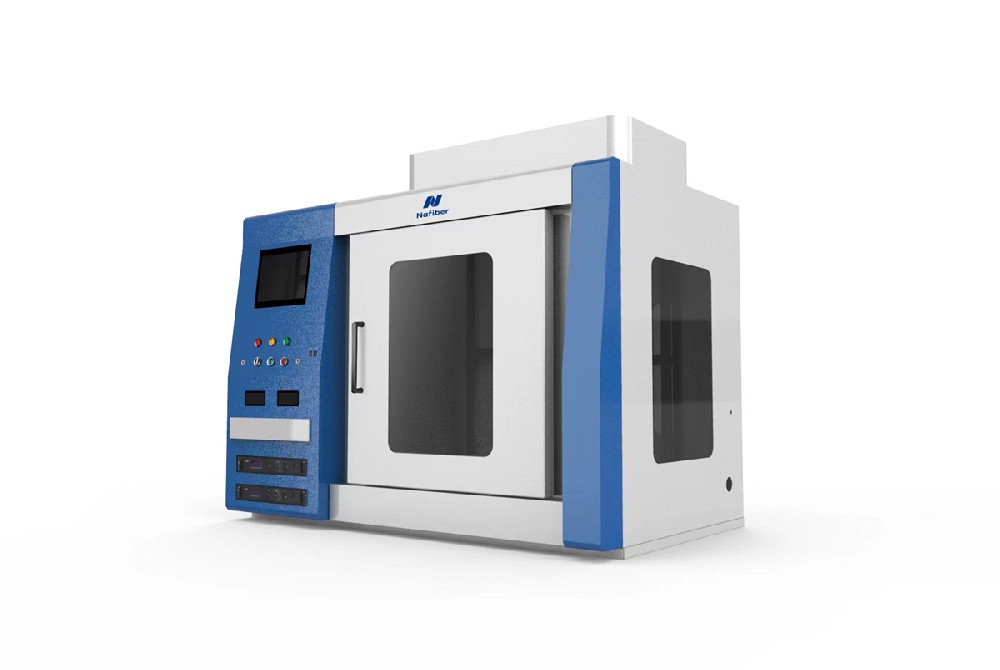

SR-100 All-round Electrospinning Equipment

1、Muliti functional, High voltage, High stability
2、High precision 6-axis fully automatic control
3、Conjugate and dlirect spinning function switching
4、Full parameter feedback, saving, exporting, and calling the PLC system
5、Design of built-in liquid pushing pump
6、It can independently control the liquid pushing pump through multiple channels
7、Modular and customizable functions

Strong R&D strength

Senior Nanomaterial Expert

Excellent technical engineer

Strategic cooperation among universities

Wide range of product applications

Product Details

Product characteristics:

1、Muliti functional, High voltage, High stability

2、High precision 6-axis fully automatic control

3、Conjugate and dlirect spinning function switching

4、Full parameter feedback, saving, exporting, and calling the PLC system

5、Design of built-in liquid pushing pump

6、It can independently control the liquid pushing pump through multiple channels

7、Modular and customizable functions

Product advantages:

1、Fully enclosed spinning environment with constant temperature, humidity, and airflow to reduce spinning drift

2、Imported module motion unit, high-precision fullyautomatic control, dynamically adjust able parameters during spinning (such as distance, drum speed, liquid pushing speed, temperature, humidity, etc)

3、Fullparameter feedback save, export, and call with one click spinning capablity

4、Can achieve remote control on the mobile end and real-time observation

5、Built in liquid pushing pump design, no need for hose connection, saving electrospinning liquid

6、Safety protection: powerovervoltage and overcurrent protection, working operationindica tor light, emergency stop switch, door opening and power outage,limitalarm, etc

7、Multiple types of customiable spinning collectorsand nozzlesto meet various scientfic re search needs

Technical Data：

Overall dimension

1300(L)×820(D)×1100(H)(mm)

Material: Sheet metal and painting

High voltage power supply

1. Positive polarity;0-50 kV,Current:0-1 mA

2. Negative polarity:30-0 kV,Current:0-1mA

· Equipped with electric shock and power outage protection

· High voltage, High stabilty, High accuracy

Automatic motion

control system

1.X axis(automatic positioning):0-260mm

2.Z axis(automatic positioning):0-160mm

3.Y-axis(automatic reciprocation): Reciprocation 0-150mm

4.Automatic distance adjustment from spinneret to collector:10-350mm

· XYZaxis fully automatic control,accuracy≤0.01mm

Liquid supply system

1.High precision liquid pushing pump.Feed rate:0.0001mm/s-0.5mm/s.

2.Two syringe pumps: Speed can be controlled separately,can obtain core-shell,hollow and bicomponent nanofibers

3.The syringe pumps are placed inside: Save electric spinningliquid, easy to clean

4.Mult-type spinneret:Single spinneret, multiple spinneret, coaxial spinneret, side by side spinneret, parallel spinneret,etc

Collector system

1. Rotary drum collector:Drum diameter:100mm; Drum length:210mm; Drum speed:0-2000rpm

2. Plate collector:200mm×200mm

3.Multi mode receiver cage type, disc type, tube type, hydrogelfiber collector,etc

Customizable

Expandable functions

1. Function switching between conjugate spinning and direct spinning

2. Ultrasonic spray/electrostatic spray function

· It can realize the preparation of hydrogelfiber/microspheres, layer by layer composite of nanofibers,and blending of nanofibers

Temperature and humidity

controlsystem

1.Temperature control: Spinning area temperature-70°℃,Accuracy±1°℃

2. Humidity control: 30%- Spinning area humidity, Accuracy 3%

3. Exhaust gas removal control: 500-5000 sccm

4.Eficient dehumidification device

5. Spinning chamber atmosphere control

Operating system

1. PLC system offull parameterfeedback, saving, exporting,and calling

2. Remote control function of mobile terminal

3.10 inch touch human-machine interface with high integration level

4. Formula interface allows for one click import of experimental parameters to achieve one click spinning

Observation system

1.LED lighting: The spinning process can be observed

2. Thelighting postion is adjustable

Safety protection system

Indicatorlight,emergency stop switch,open door power off,limit alarm,grounding protection,etc

Product Details

Product characteristics:

1、Muliti functional, High voltage, High stability

2、High precision 6-axis fully automatic control

3、Conjugate and dlirect spinning function switching

4、Full parameter feedback, saving, exporting, and calling the PLC system

5、Design of built-in liquid pushing pump

6、It can independently control the liquid pushing pump through multiple channels

7、Modular and customizable functions

Product advantages:

1、Fully enclosed spinning environment with constant temperature, humidity, and airflow to reduce spinning drift

3、Fullparameter feedback save, export, and call with one click spinning capablity

4、Can achieve remote control on the mobile end and real-time observation

5、Built in liquid pushing pump design, no need for hose connection, saving electrospinning liquid

6、Safety protection: powerovervoltage and overcurrent protection, working operationindica tor light, emergency stop switch, door opening and power outage,limitalarm, etc

7、Multiple types of customiable spinning collectorsand nozzlesto meet various scientfic re search needs

Technical Data：

Overall dimension

1300(L)×820(D)×1100(H)(mm)

Material: Sheet metal and painting

High voltage power supply

1. Positive polarity;0-50 kV,Current:0-1 mA

2. Negative polarity:30-0 kV,Current:0-1mA

· Equipped with electric shock and power outage protection

· High voltage, High stabilty, High accuracy

Automatic motion

control system

1.X axis(automatic positioning):0-260mm

2.Z axis(automatic positioning):0-160mm

3.Y-axis(automatic reciprocation): Reciprocation 0-150mm

4.Automatic distance adjustment from spinneret to collector:10-350mm

· XYZaxis fully automatic control,accuracy≤0.01mm

Liquid supply system

1.High precision liquid pushing pump.Feed rate:0.0001mm/s-0.5mm/s.

2.Two syringe pumps: Speed can be controlled separately,can obtain core-shell,hollow and bicomponent nanofibers

3.The syringe pumps are placed inside: Save electric spinningliquid, easy to clean

4.Mult-type spinneret:Single spinneret, multiple spinneret, coaxial spinneret, side by side spinneret, parallel spinneret,etc

Collector system

1. Rotary drum collector:Drum diameter:100mm; Drum length:210mm; Drum speed:0-2000rpm

2. Plate collector:200mm×200mm

3.Multi mode receiver cage type, disc type, tube type, hydrogelfiber collector,etc

Customizable

Expandable functions

1. Function switching between conjugate spinning and direct spinning

2. Ultrasonic spray/electrostatic spray function

· It can realize the preparation of hydrogelfiber/microspheres, layer by layer composite of nanofibers,and blending of nanofibers

Temperature and humidity

controlsystem

1.Temperature control: Spinning area temperature-70°℃,Accuracy±1°℃

2. Humidity control: 30%- Spinning area humidity, Accuracy 3%

3. Exhaust gas removal control: 500-5000 sccm

4.Eficient dehumidification device

5. Spinning chamber atmosphere control

Operating system

1. PLC system offull parameterfeedback, saving, exporting,and calling

2. Remote control function of mobile terminal

3.10 inch touch human-machine interface with high integration level

4. Formula interface allows for one click import of experimental parameters to achieve one click spinning

Observation system

1.LED lighting: The spinning process can be observed

2. Thelighting postion is adjustable

Safety protection system

Indicatorlight,emergency stop switch,open door power off,limit alarm,grounding protection,etc

Application Area

Biomedicine

Microelectronics

New energy

Environmental protection

Defence and military

Protection

Artificial skin

PM2.5 mask
